Residual current circuit breaker 4P 40A 30mA type A

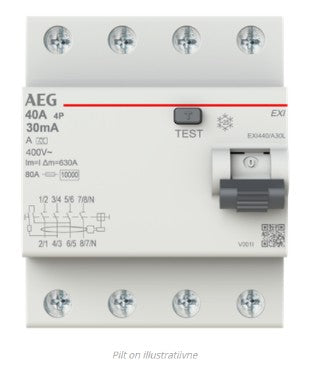

The AEG EXI440/A30 is a 4-pole residual current circuit breaker (RCCB) with a rated current of 40 A and a rated residual current of 30 mA. It is suitable for residual current protection of 3-phase electrical circuits in residential, commercial, and technical electrical installations.

This is a Type A residual current device, which is suitable for modern loads where pulsating DC residual current may occur. The device is mounted on a DIN rail in the electrical distribution board and is used in conjunction with a suitable circuit breaker, as the RCCB itself does not protect the circuit against overload or short circuits.

Technical specifications

Manufacturer: AEG
Series/model: EXI
Product code: EXI440/A30
Product type: residual current circuit breaker / RCCB
Number of poles: 4P
Rated current: 40 A
RCCB type: A
Rated residual current: 30 mA / 0.03 A
Rated voltage: 400 V AC
Voltage type: AC
Frequency: 50/60 Hz
Number of modules: 4 modules
Mounting: DIN rail
Application: residual current protection of electrical circuits
Protection function: residual current protection; does not replace a circuit breaker for overload or short-circuit protection
Standard: IEC/EN 61008-1
Package quantity: 1 pc

Suitable for, for example

Residual current protection of 3-phase circuits
Protection of appliance and distribution circuits in combination with a suitable circuit breaker
Residential, commercial, and technical electrical panels
Situations requiring a 4-pole 40 A / 30 mA Type A residual current circuit breaker
