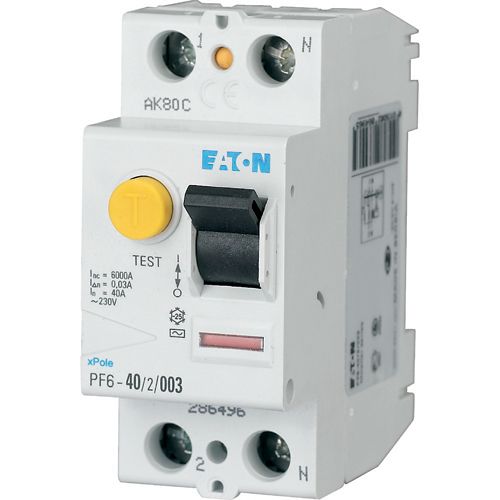

Residual current circuit breaker 2P 40A 30mA

The Eaton PF6-40/2/003 is a two-pole residual current circuit breaker for protecting single-phase electrical circuits. The device disconnects the power supply in the event of a residual current and helps protect people from electric shock and the installation from hazards resulting from leakage current.

Technical specifications

Manufacturer: Eaton
Series/model: Moeller series xPole PF6/7
Product code: 286496
Model code: PF6-40/2/003
EAN: 4015082864965
Product type: residual current circuit breaker / RCCB
Number of poles: 2P
Rated current: 40 A
Rated residual current: 30 mA / 0.03 A
Residual current type: AC
Breaking capacity / short-circuit resistance: 6 kA
Rated voltage: 230/240 V AC
Standard: IEC/EN 61008
Mounting: DIN rail
Protection class: IP20
Dimensions: 80 × 76 × 35 mm
Weight: approx. 0.22 kg
Compliance: RoHS
Application: residual current protection for single-phase electrical circuits in electrical distribution boards

Suitable for, for example

Suitable for residual current protection of single-phase circuits in the distribution boards of homes, offices, garages, workshops, or smaller commercial spaces where a 40A 30mA AC-type residual current circuit breaker is required.

We recommend also looking at: miniature circuit breakers, distribution boards, DIN rails, neutral and earth terminals, and Eaton xPole accessories.

Not sure if this residual current circuit breaker is suitable for your distribution board or solution? Write or call us — we will help you choose the right solution.
