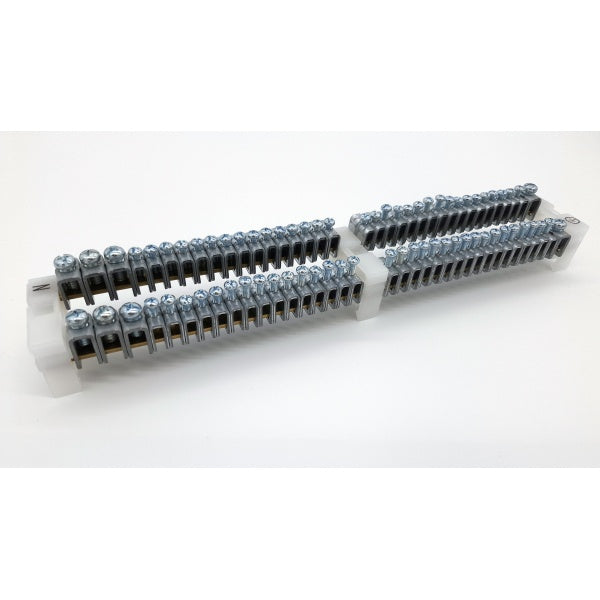

N/PE-bar Ensto KNA4.136NP Cu 500 V 82 A

The Ensto KNA4.136NP is a copper N/PE terminal block for electrical cabinets and distribution boards. The block is designed for connecting neutral and protective conductors and helps to keep the cabinet wiring organized and clear.

Suitable for use in panel building where N and PE conductors need to be securely brought to separate connection points.

Technical specifications

Manufacturer: Ensto
Series/model: KNA4.136NP
Product code: KNA4.136NP
EAN: 6418677153143
Product type: N/PE terminal block
Material: copper / Cu
N-connections: 4 × 16 mm² + 32 × 6 mm²
PE-connections: 4 × 16 mm² + 32 × 6 mm²
Rated current: 82 A
Rated voltage: 500 V
Connectable conductor cross-section, flexible without ferrule: 1.5–10 mm²
Connectable conductor cross-section, flexible with ferrule: 1.5–10 mm²
Connectable conductor cross-section, multi-core wire: 1.5–16 mm²
Connection type: screw connection
Mounting: on DIN rail or screw mounting
Dimensions: 40 × 269 × 35 mm
Weight: approx. 0.415 kg
Package quantity: 1 pc

Suitable for

Connecting N and PE conductors in electrical cabinets
Distribution boards and junction boxes
Panel building and organizing electrical installations
For residential, commercial, and technical installations

We recommend also looking at: DIN rail terminals, distribution boards, circuit breakers, connecting cables, and cabinet accessories.

Not sure if this N/PE block is suitable for your cabinet solution? Write or call us — we will help you choose the right solution.
