  • Sku: EcoNG170-090
  • Barcode: 4750667151619

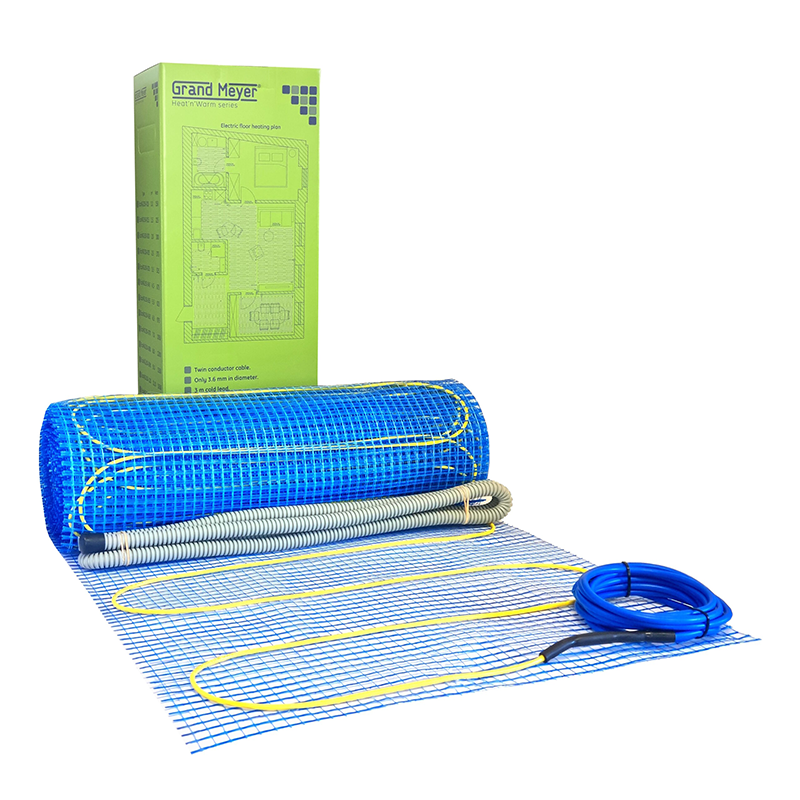

Heating mat EcoNG170-090 9.0 m² 1530 W

96,20 €
 per
Shipping calculated at checkout.

Product details

EcoNG170-090 is a thin electric underfloor heating mat suitable for bathrooms, hallways, kitchens, and other areas where comfortable and uniform underfloor heating is desired. The mat is installed into tile adhesive or a thin layer of leveling compound.

The specific power of the mat is 170 W/m², and the total power of the 9.0 m² mat is 1530 W. The heating mat is 50 cm wide and approximately 18 m long. The two-core shielded heating cable is attached to a mesh, which makes installation easy and helps ensure even heat distribution.

Technical specifications

  • Model: EcoNG170-090
  • Product code: 8238058
  • Heated area: 9.0 m²
  • Mat dimensions: 0.5 × 18.0 m
  • Power: 1530 W
  • Specific power: 170 W/m²
  • Supply voltage: 230 V
  • Operating current: approx. 6.7 A
  • Heating cable type: two-core, shielded
  • Mat thickness: approx. 3.8 mm
  • Mat width: 50 cm
  • Cold lead length: 3 m
  • Installation: into tile adhesive or leveling compound

The kit includes

Heating mat, connection cable, conduit for the floor sensor, installation manual, and warranty card.

The thermostat is not included and must be selected separately.

NB! The heating mat itself must not be cut to a shorter length. The appropriate mat size must be selected based on the free floor area to be heated.
