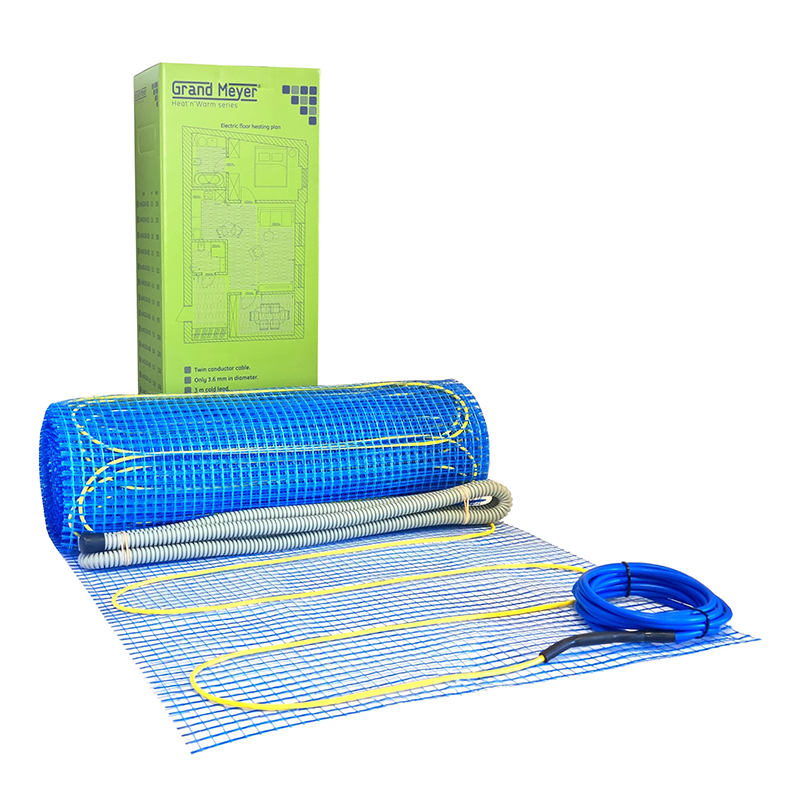

Heating mat EcoNG170-055 5.5 m² 935 W
Product details
EcoNG170-055 is a thin electric floor heating mat suitable for bathrooms, hallways, kitchens, and other rooms where comfortable and even floor heating is desired. The mat is installed into tile adhesive or a thin layer of leveling compound.
The specific power of the mat is 170 W/m², and the total power of the 5.5 m² mat is 935 W. The heating mat is 50 cm wide and approximately 11 m long. The dual-core shielded heating cable is attached to a mesh, which makes installation easy and helps ensure even heat distribution.
Technical specifications
- Model: EcoNG170-055
- Product code: 8238054
- Heated area: 5.5 m²
- Mat dimensions: 0.5 × 11.0 m
- Power: 935 W
- Specific power: 170 W/m²
- Supply voltage: 230 V
- Operating current: approx. 4.1 A
- Heating cable type: dual-core, shielded
- Mat thickness: approx. 3.8 mm
- Mat width: 50 cm
- Cold lead length: 3 m
- Installation: into tile adhesive or leveling compound
The set includes
Heating mat, connection cable, conduit for the floor sensor, installation manual, and warranty card.
The thermostat is not included and must be selected separately.
NB! The heating mat itself must not be cut to a shorter length. The appropriate mat size should be chosen based on the free floor area to be heated.
