Heating mat EcoNG170-025 2.5 m² 425 W

43,00 €
 per
Shipping calculated at checkout.
Just 1 left. Order soon!

Product details

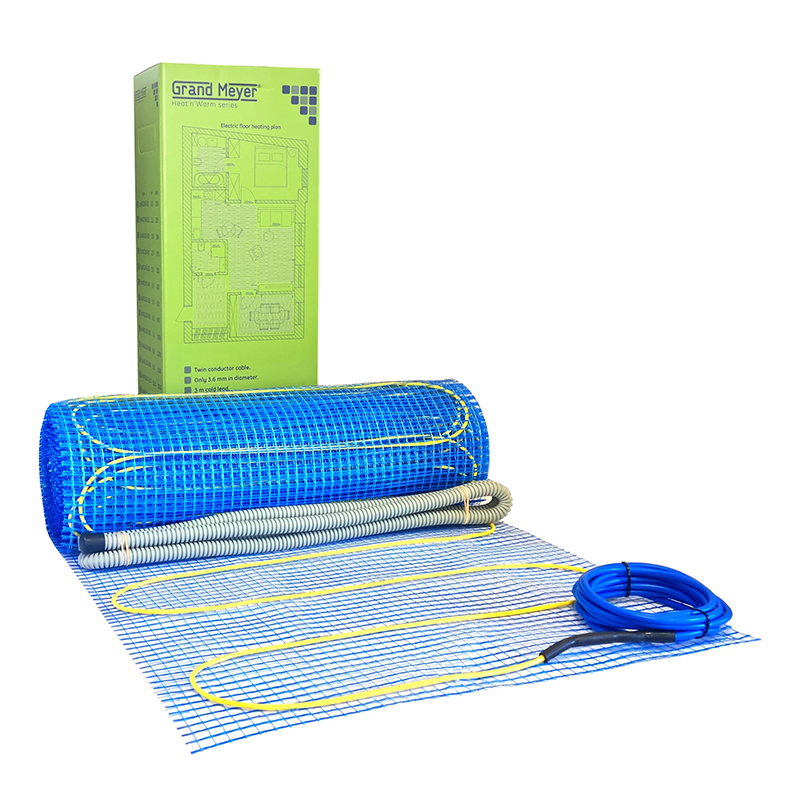

EcoNG170-025 is a thin electric underfloor heating mat suitable for bathrooms, hallways, kitchens, and other areas where comfortable and even floor heating is desired. The mat is installed into tile adhesive or a thin layer of leveling compound.

The specific power of the mat is 170 W/m², and the total power of the 2.5 m² mat is 425 W. The heating mat is 50 cm wide and approximately 5 m long. A dual-core shielded heating cable is attached to the mesh, which makes installation easy and helps ensure uniform heat distribution.

Technical specifications

  • Model: EcoNG170-025
  • Product code: 8238051
  • Heated area: 2.5 m²
  • Mat dimensions: 0.5 × 5.0 m
  • Power: 425 W
  • Specific power: 170 W/m²
  • Supply voltage: 230 V
  • Operating current: approx. 1.85 A
  • Heating cable type: dual-core, shielded
  • Mat thickness: approx. 3.8 mm
  • Mat width: 50 cm
  • Cold lead length: 3 m
  • Installation: into tile adhesive or leveling compound

Package includes

Heating mat, connection cable, installation conduit for floor sensor, installation manual, and warranty card.

The thermostat is not included and must be selected separately.

NB! The heating mat itself must not be cut to length. The appropriate mat size must be chosen based on the open floor area to be heated.
