  • Sku: EcoNG170-015
  • Barcode: 4751028121968

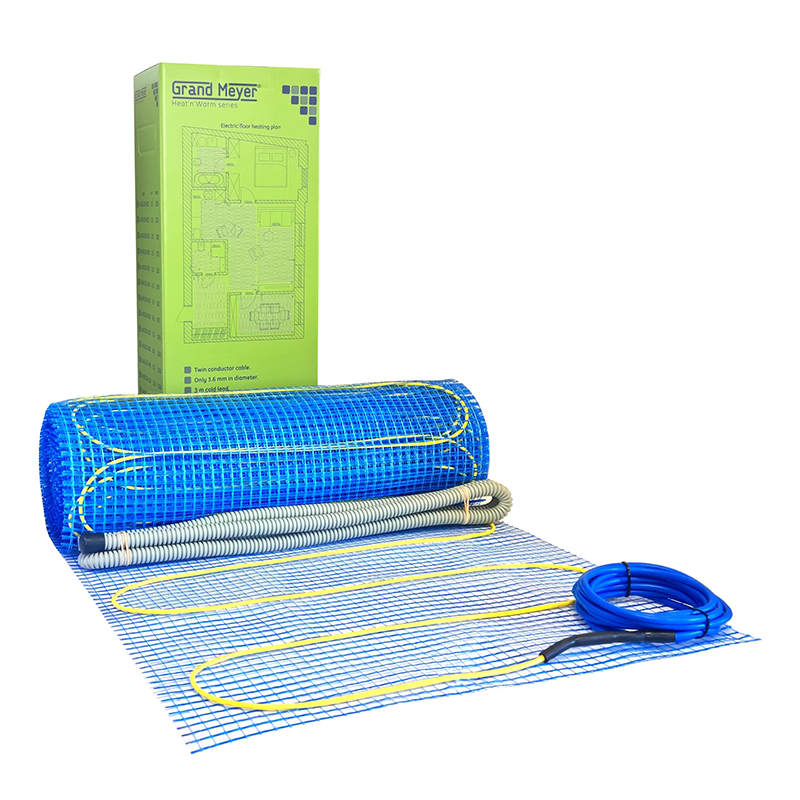

Heating mat EcoNG170-015 1.5 m² 255 W

35,45 €
 per
Shipping calculated at checkout.
Just 1 left. Order soon!

Product details

EcoNG170-015 is a thin electric underfloor heating mat suitable for installation under ceramic tiles and other compatible floor coverings. The heating mat is installed within tile adhesive or a thin layer of leveling compound, making it an excellent solution for bathrooms, hallways, kitchens, and other rooms where comfortable and uniform underfloor heating is desired.

The specific power of the mat is 170 W/m², and the total power output of the 1.5 m² mat is 255 W. The heating mat is 50 cm wide and approximately 3 m long. The thin twin-core shielded heating cable is attached to a mesh, which simplifies installation and helps ensure even heat distribution.

Technical specifications

  • Model: EcoNG170-015
  • Product code: 8238049
  • Heated area: 1.5 m²
  • Mat dimensions: 0.5 × 3.0 m
  • Power: 255 W
  • Specific power: 170 W/m²
  • Supply voltage: 230 V
  • Operating current: approx. 1.1 A
  • Heating cable type: twin-core, shielded
  • Mat thickness: approx. 3.8 mm
  • Mat width: 50 cm
  • Cold lead length: 3 m
  • Installation: in tile adhesive or leveling compound

The set includes

Heating mat, connection cable, conduit for the floor sensor, installation manual, and warranty card.

The thermostat is not included and must be purchased separately.

NB! The heating mat itself must not be cut to length. The appropriate mat size should be selected based on the free floor area to be heated.
