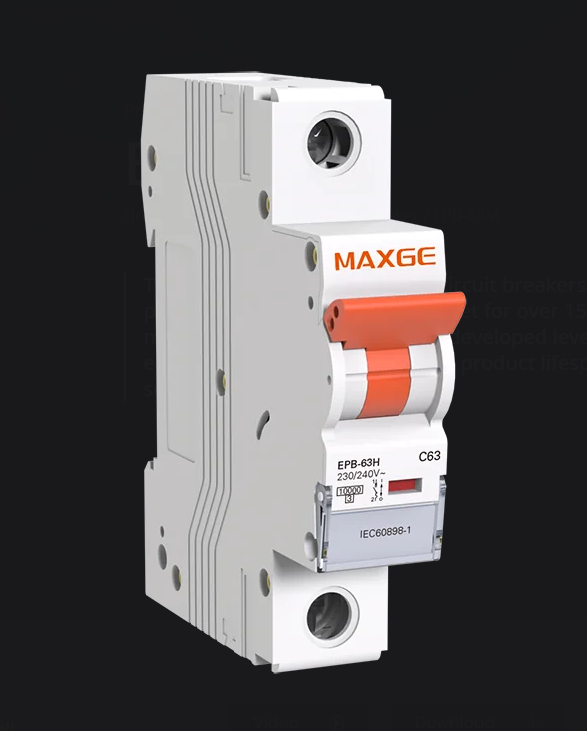

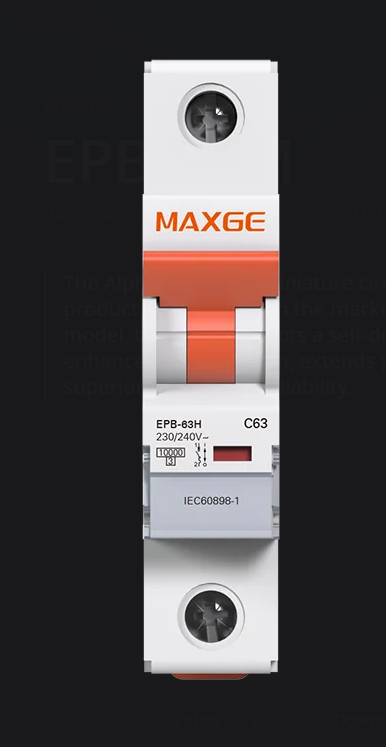

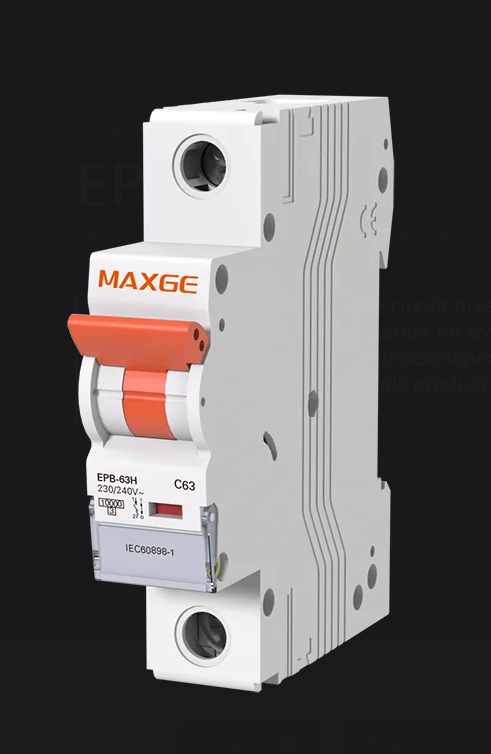

Circuit breaker 1P C6 6kA

The MAXGE EPB-63M-1C-6 is a single-pole C-characteristic miniature circuit breaker for the protection of low-load control, automation, lighting, and auxiliary circuits. Suitable for use in electrical distribution boards for overload and short-circuit protection.

Technical data

Manufacturer: MAXGE
Series/model: EPB-63M
Product code: EPB-63M-1C-6
Product type: miniature circuit breaker / MCB
Number of poles: 1P
Number of protected poles: 1
Rated current: 6 A
Tripping characteristic: C
Breaking capacity: 6 kA
Rated voltage: 230/400 V / up to 400 V AC
Frequency: 50/60 Hz
Rated insulation voltage Ui: 500 V
Rated impulse withstand voltage Uimp: 4 kV
Current limiting class: 3
Voltage type: AC
Degree of protection: IP20
Mounting: DIN rail
Width: 1 module / 17.8 mm
Dimensions: 17.8 × 72 × 81.5 mm
Weight: 0.125 kg
Auxiliary equipment compatible: yes
Application: protection of control, automation, lighting, and auxiliary circuits in distribution boards

Suitable for

Suitable for electrical distribution boards for the protection of low-load control, automation, lighting, or auxiliary circuits where a 6A C-characteristic circuit breaker is required.
