Circuit breaker 1P C16 6kA

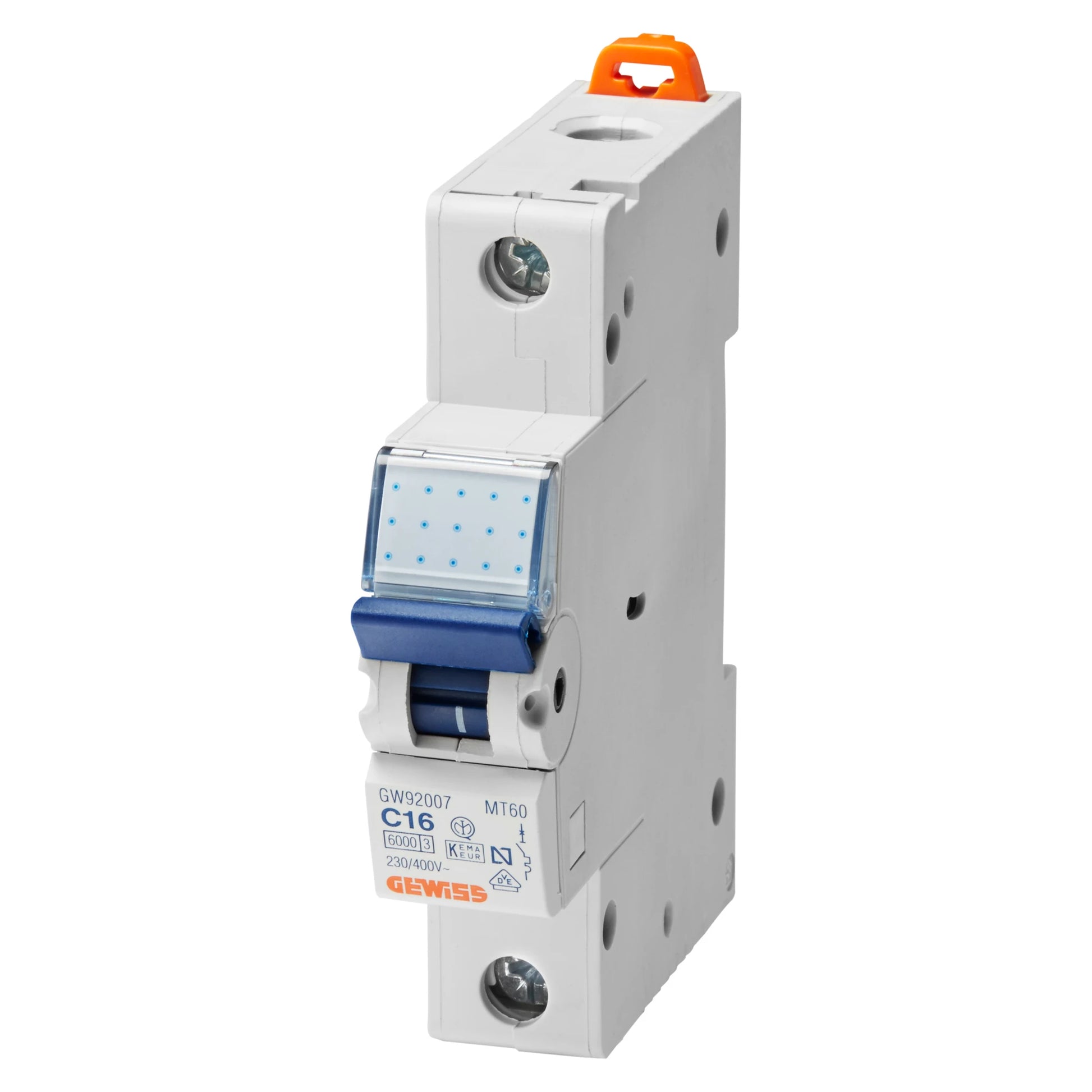

The Gewiss GW92007 is a 1-pole C-characteristic miniature circuit breaker with a rated current of 16 A. It is suitable for protecting electrical circuits against overload and short circuits in residential, commercial, and technical installations.

The C-characteristic is suitable for circuits where higher than normal inrush currents may occur, such as with appliances, small motors, or technical loads. The circuit breaker is designed for installation on a DIN rail in an electrical distribution board.

Technical specifications

Manufacturer: Gewiss
Series/model: MT 60 / 90 MCB
Product code: GW92007
EAN: 8011564057043
Product type: miniature circuit breaker / MCB
Number of poles: 1P
Rated current: 16 A
Characteristic: C
Breaking capacity according to EN 60898: 6 kA
Breaking capacity according to IEC/EN 60947-2: 10 kA
Number of modules: 1 module
Rated voltage: 230/400 V AC
Maximum operating voltage: 440 V AC / 220 V DC
Frequency: 50/60 Hz
Insulation voltage Ui: 500 V
Rated impulse withstand voltage Uimp: 4 kV
Electrical endurance: 10,000 cycles
Mechanical endurance: 20,000 cycles
Connection wire: up to 35 mm²
Tightening torque: 2 Nm
Operating temperature: –25…+70 °C
Installation: DIN rail
Standard: IEC/EN 60898-1
Package quantity: 1 pc

Suitable for, for example

Protecting socket circuits
Protecting appliance circuits
Protecting small motors or technical loads
Electrical panels in home, commercial, and industrial installations
Situations requiring 16 A protection for a 1-phase circuit with C-characteristic
