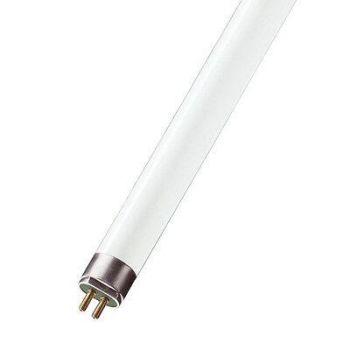

Fluorescent tube 54W/830 G5

Technical data

Electrical data

Rated power: 54 W

Actual power: 53.9 W

Rated voltage: 120 V

Rated current: 0.46 A

Lighting specifications

Luminous flux: 5000 lm

Luminous efficacy: 93 lm/W

Luminous flux at 35 °C: 5000 lm

Light color (name): LUMILUX Warm White

Color temperature: 3000 K

Color rendering index (Ra): ≥80

Light code: 830

Rated lumen maintenance factor (LLMF):

2,000 hours: 0.95

4,000 hours: 0.93

6,000 hours: 0.92

8,000 hours: 0.90

12,000 hours: 0.90

16,000 hours: 0.90

20,000 hours: 0.89

Dimensions and weight

Total length: 1163.2 mm

Length (without contacts): 1149 mm

Diameter: 16 mm

Pipe diameter: 16 mm

Product weight: 88.02 g

Lifespan

Service life: 19,000 h (1)

Lamp reliability (survival factor):

2,000 hours: 0.99

4,000 hours: 0.99

6,000 hours: 0.99

8,000 hours: 0.99

12,000 hours: 0.99

16,000 hours: 0.97

20,000 hours: 0.85

Average life B50: 24,000 h
(1) When used with electronic ballast (ECG) with pre-ignition

Additional information

Socket type: G5

Mercury content: 2.0 mg

Note: For use with electronic ballast only. The lamp is designed for an internal temperature of 30…40 °C; optimum luminous flux is achieved at 35 °C.

Ability

Dimmable: Yes
