Contact 2NO

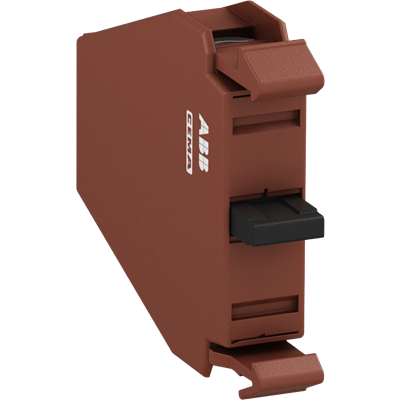

ABB P9B20VN is a modular contact block with two normally open contacts (2 NO). It is designed for use in 22 mm control and signaling device series where a reliable and wear-resistant contact solution is required. The compact design and robust construction ensure a long service life even in demanding industrial conditions.

Technical data:

Type: P9B20VN

Contact type: 2 NO (normally open)

Case diameter: 22 mm

Connection: screw terminals

Rated voltage: up to 690 V AC

Rated current: up to 10 A

Material: polyamide

Operating temperature: –30 °C … +70 °C

Installation: front mounting

Dimensions: approx. 9.6 mm module

Color: black

Features:

Two independent NO contacts

Easy and secure installation

Suitable for all ABB control buttons and switches (22 mm series)

High electrical and mechanical durability

Field of application:
Suitable for use in control panels, industrial automation equipment, machine control systems and other electrical installations where a multi-contact control solution is required.
